• Black scuff plates
• Cigarette lighter
• Inside hood release
• Map lights
• Tachometer

• 4-wheel anti-lock brake system
• 95 amp alternator
• Four wheel drive
• Front/rear stabilizer bar
• HD gas shock absorbers
• Pwr front disc/rear drum brakes
• Pwr rack & pinion steering

• 4-wheel anti-lock brake system

3.0L (182) SEFI FLEXIBLE FUEL V6 ENGINE

• (STD) *FFV engine is capable of using 100% unleaded gasoline
• Ethanol (E-85)
• or a combination of both*

• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Aluminum Wheels
• Power Steering
• Front Disc/Rear Drum Brakes
• ABS
• Fog Lamps
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Cloth Seats
• Split Bench Seat
• Immobilizer
• AM/FM Stereo
• CD Player
• Power Outlet
• Front Reading Lamps
• ABS
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 7.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2510
• Gross Axle Wt Rating - Rear (lbs): 2600
• Curb Weight - Front (lbs): 2143
• Curb Weight - Rear (lbs): 1456
• Gross Vehicle Weight Rating Cap (lbs): 5080
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2510
• Spring Capacity - Rear (lbs): 2600
• Axle Type - Front: Independent SLA
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.14
• Stabilizer Bar Diameter - Rear (in): 0.63
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 10.00 x 2.50
• Tires
• Front Tire Order Code: T7R
• Rear Tire Order Code: T7R
• Front Tire Size: P235/75R15SL
• Rear Tire Size: P235/75R15SL
• Spare Tire Size: P235 Temp
• Front Tire Capacity (lbs): 1843
• Rear Tire Capacity (lbs): 1843
• Spare Tire Capacity (lbs): 1843
• Revolutions/Mile @ 45 mph - Front: 721
• Revolutions/Mile @ 45 mph - Rear: 721
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 7.0
• Rear Wheel Size (in): 15 x 7.0
• Spare Wheel Size (in): 15 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 18.7
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): 45.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 201.7
• Width, Max w/o mirrors (in): 70.3
• Height, Overall (in): 67.5
• Overhang, Front (in): 33.3
• Overhang, Rear w/o bumper (in): 42.5
• Front Bumper to Back of Cab (in): 121.3
• Cab to Axle (in): 37.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.0
• Frame Width, Rear (in): 32.8
• Ground Clearance, Rear (in): 7.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 71.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 52.0
• Cargo Box Width @ Wheelhousings (in): 40.4
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 53.8
• Front Hip Room (in): 52.7
• Second Head Room (in): 35.6
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 15.3
• Second Hip Room (in): 19.8
• Summary

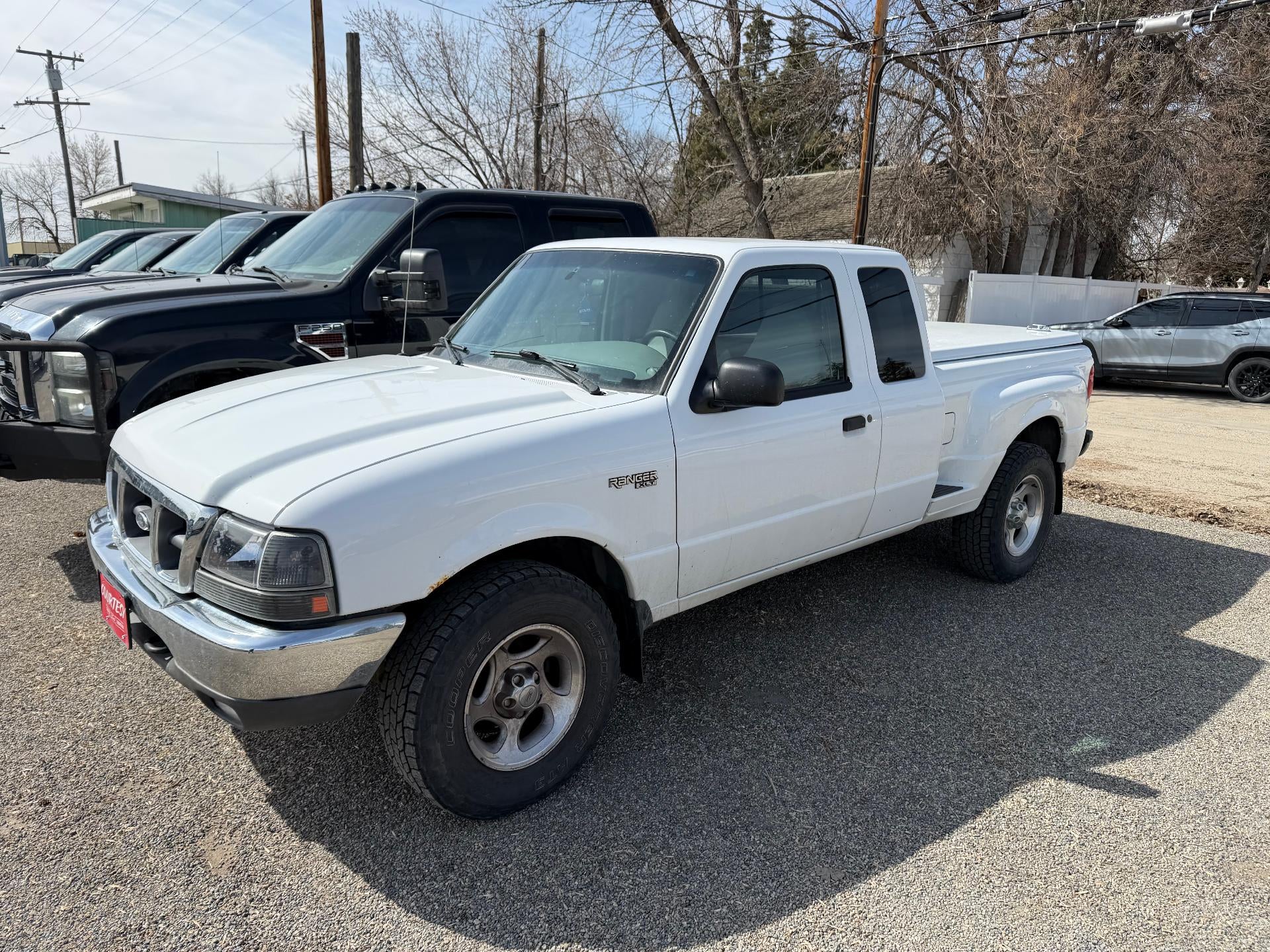

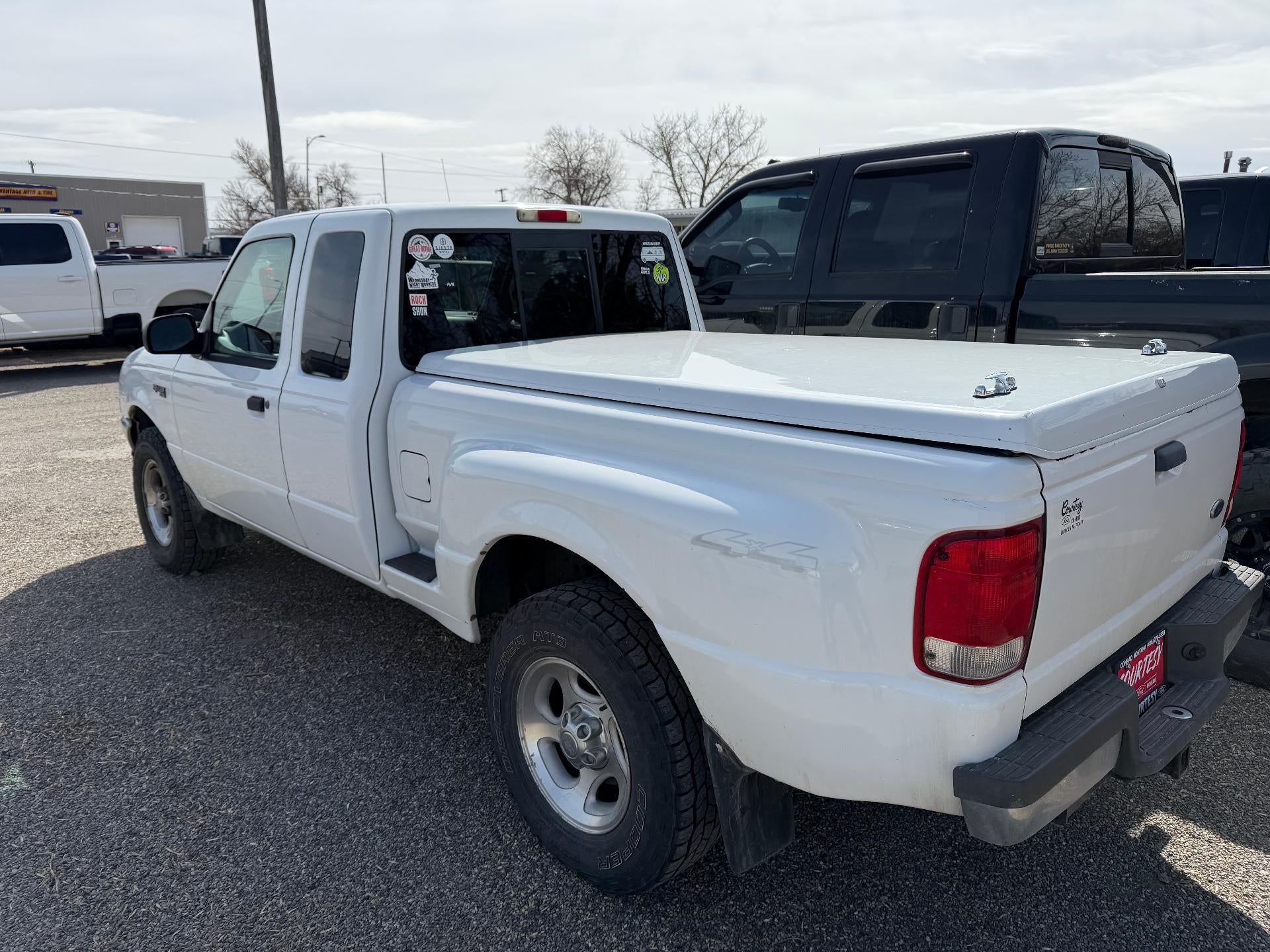

• Vehicle Name: Ford Ranger
• Body Style: Supercab 6'
• Body Code: 125.9" WB
