• (4) air registers w/positive shut-off
• Accessory delay
• Ashtray & cigar lighter
• Auxiliary pwr point
• Color-keyed carpet full-floor covering
• Color-keyed cloth headliner
• Color-keyed scuff plates
• Cruise control
• Dash-top tray
• Driver & front passenger manual lumbar support
• Driver & passenger grab handles
• Dual color-keyed coat hooks
• Front door operated dome lamp w/time delay off & IP switch
• Front passenger-side roof ride handle
• Front/rear map lamps
• Glove Box
• Instrument panel mounted storage bin & trash bag hook
• Overhead console-inc: garage door opener & sunglass bin
• Pwr adjustable pedals w/memory
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr windows w/driver one-touch-down & backlit switches
• Rear seat LH/RH grab handles
• Rear seating roof ride handles
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Sirius satellite radio
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel controls, USB port, audio input jack, 911 Assist, vehicle health reports
• Tilt steering wheel
• Unique front/rear floor mats w/King Ranch logo

• (2) front tow hooks
• 157-amp HD alternator
• 2-ton mechanical jack
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Class V trailer hitch receiver-inc: 2" hitch
• Front stabilizer bar
• HD gas shock absorbers
• Manual transfer case & hubs
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/vacuum boost
• Pwr steering w/steering damper
• Rear auxiliary springs
• Trailer brake controller
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4 pin combination connector

• 4-wheel anti-lock braking system (ABS)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags
• Reverse vehicle aid sensor
• Tire pressure monitoring system

6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE

• 135-amp HD alternator
• dual 750 CCA battery
• turbo boost gauge
• air filter minder *Includes Winter Front Grille Cover in AK
• CO
• ID
• IA
• MA
• ME
• MI
• MN
• MT
• NH
• NY
• ND
• NE
• SD
• VT
• WI
• WY*

• 6.4L OHV V8 TURBO-DIESEL POWER STROKE ENGINE -inc: 135-amp HD alternator dual 750 CCA battery turbo boost gauge air filter minder *Includes Winter Front Grille Cover in AK CO ID IA MA ME MI MN MT NH NY ND NE SD VT WI WY*
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Aluminum Wheels
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Power Folding Mirrors
• Privacy Glass
• Sliding Rear Window
• Intermittent Wipers
• AM/FM Stereo
• CD Changer
• CD Player
• Premium Sound System
• Satellite Radio
• Bluetooth® Connection
• Telematics
• Leather Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Power Driver Seat
• Power Passenger Seat
• Seat Memory
• Floor Mats
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Trip Computer
• Adjustable Pedals
• Immobilizer
• Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Power Outlet
• Auto-Dimming Rearview Mirror
• Universal Garage Door Opener
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• ABS
• Driver Air Bag
• Passenger Air Bag
• Rear Parking Aid
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Capacity (amps): HD 157
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 30.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 7000
• Curb Weight - Front (lbs): 4653
• Curb Weight - Front (lbs): 3827
• Curb Weight - Rear (lbs): 2948
• Curb Weight - Rear (lbs): 2845
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Vehicle Weight Rating Cap (lbs): 10800
• Gross Combined Wt Rating (lbs): 23000
• Gross Combined Wt Rating (lbs): 18000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1875
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1680
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3825
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2825
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana 60 Monobeam
• Axle Type - Rear: Visteon Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Stabilizer Bar Diameter - Rear (in): 0.63
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TJB
• Rear Tire Order Code: TJB
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT275/70R18E
• Rear Tire Size: LT275/70R18E
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Revolutions/Mile @ 45 mph - Spare: 664
• Wheels
• Front Wheel Size (in): 18 x 8
• Rear Wheel Size (in): 18 x 8
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.2
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.7
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.2
• Ground to Top of Load Floor (in): 38.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.1
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.4
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

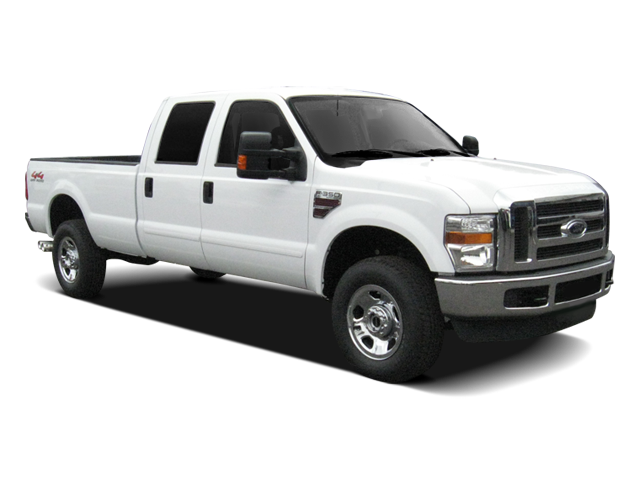

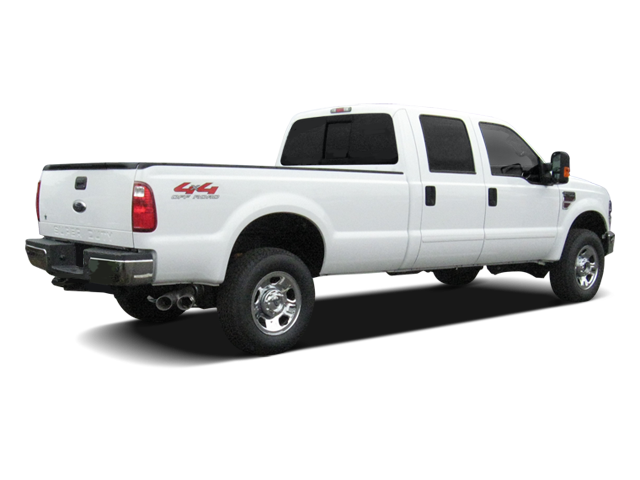

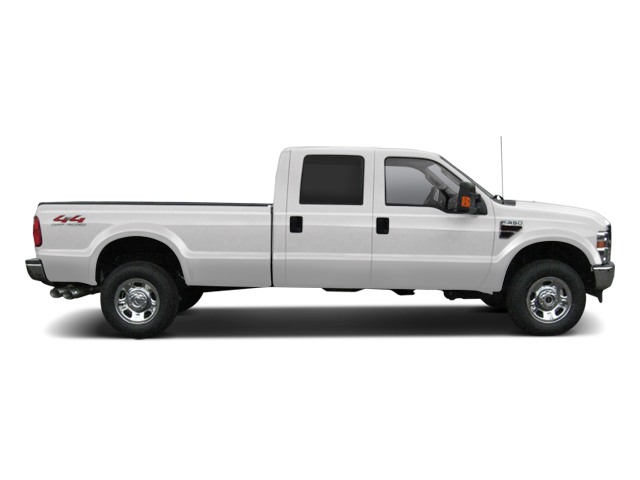

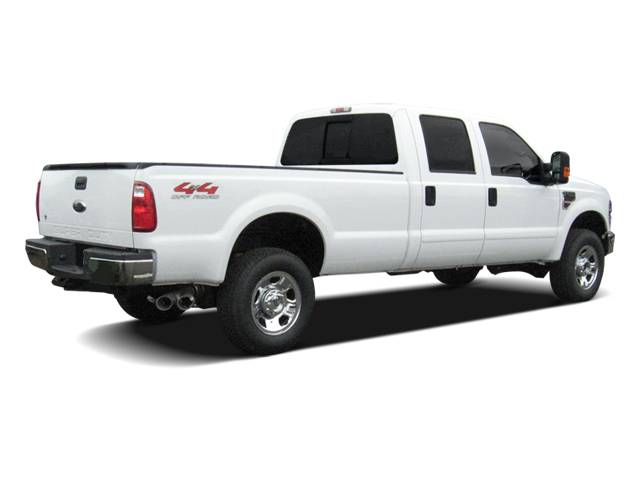

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
