• Air conditioning, single-zone manual front climate control
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Floor covering, Black rubberized vinyl
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt

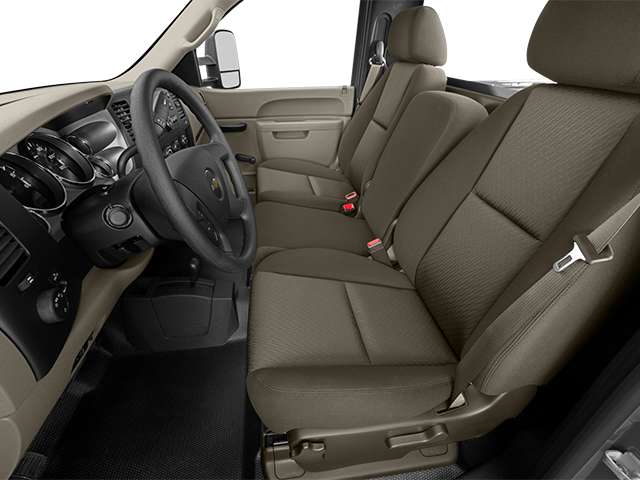

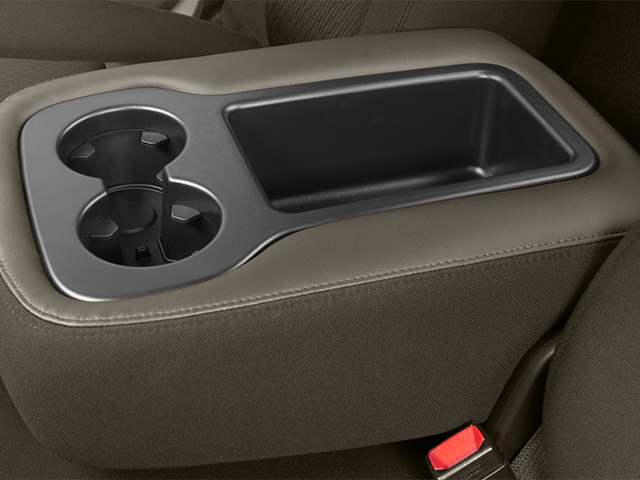

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• SiriusXM Satellite Radio, delete
• Steering wheel includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, power, recirculating ball
• Suspension, front independent, torsion bar
• Transfer case, with floor-mounted shifter (Requires 4WD models)

• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System (does not apply to spare tire)

WINDOWS, LOCKS AND MIRRORS, POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE

• Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors
• RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43 models include rear door power windows and locks.

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)

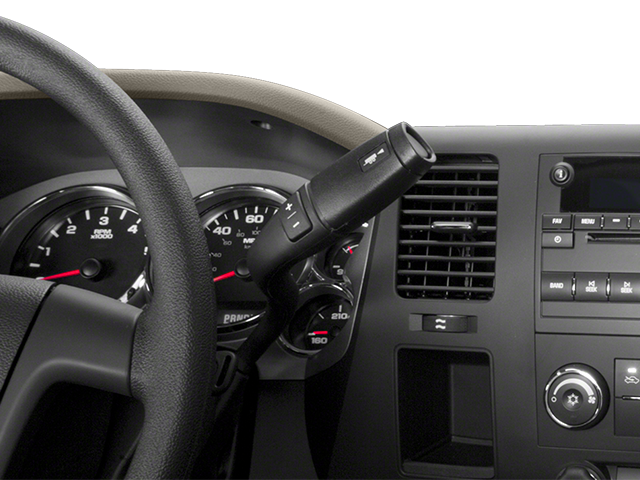

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

DOOR LOCKS, POWER

• includes Remote Keyless Entry

WHEELS, 17" (43.2 CM) STEEL

• (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

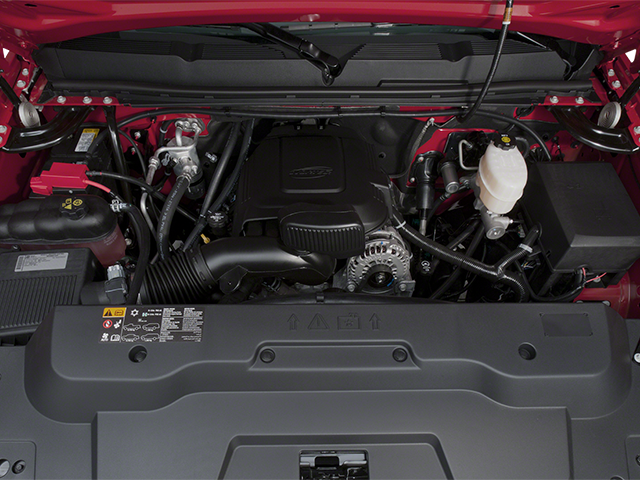

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

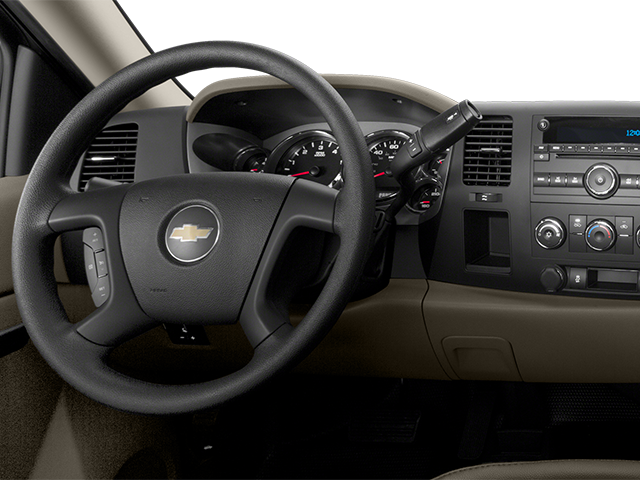

STEERING WHEEL, LEATHER-WRAPPED

• with theft-deterrent locking feature

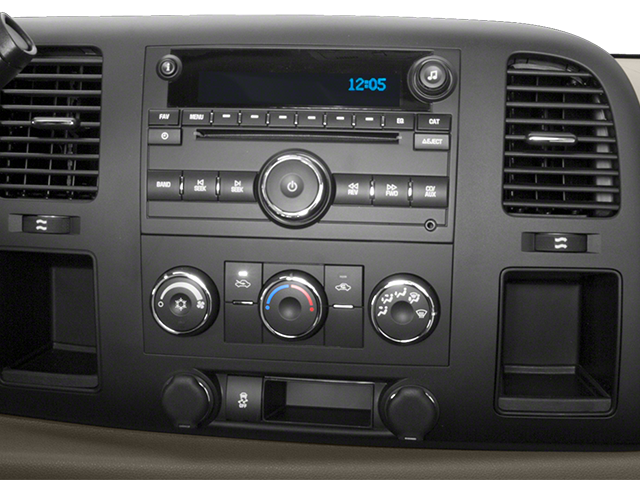

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock

• LICENSE PLATE FRONT MOUNTING PACKAGE
• DEFOGGER REAR-WINDOW ELECTRIC
• WINDOWS LOCKS AND MIRRORS POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43 models include rear door power windows and locks.
• ENGINE BLOCK HEATER
• DARK TITANIUM CLOTH SEAT TRIM
• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• TRAILER BRAKE CONTROLLER INTEGRATED
• OnStar Equipped (subscription required)
• REAR AXLE 3.73 RATIO
• AUDIO SYSTEM FEATURE SPEAKER SYSTEM
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)
• GVWR 9500 LBS. (4309 KG)
• TIRE SPARE LT265/70R17E ALL-TERRAIN BLACKWALL
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• BLUE TOPAZ METALLIC
• DOOR LOCKS POWER includes Remote Keyless Entry
• WHEELS 17" (43.2 CM) STEEL (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• STEERING WHEEL LEATHER-WRAPPED with theft-deterrent locking feature
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3457
• Curb Weight - Rear (lbs): 2505
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1485
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2475
• Maximum Trailering Capacity (lbs): 17500
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZXT
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 2760
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3100
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 133.70
• Length, Overall w/o rear bumper (in): 225.00
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 77.50
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.50
• Cab to Axle (in): 56.00
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.60
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 9.10
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 75.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
